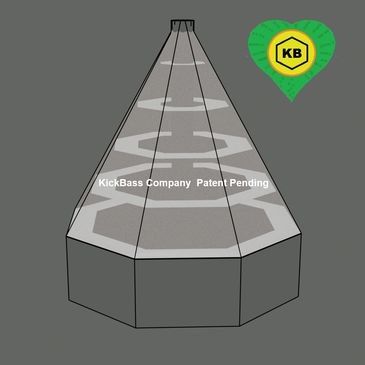

CONICAL MANUFACTURING & PRODUCTION SYSTEMS SERIES

Dimensions:

Vertical Axis Height: 60'

Ground Diameter: 74.16' (22.60m)

Ground Footprint: 4,320 square feet

Standardized Scaling Ratio: 1:1.236

Zoning Lot Clearance: Min. 75' x 75'

Horizontal Replacement Acreage: 3.5 to 5.0 acres

Spatial Compression Ratio: 61.8:1

Enclosed Utility Volume: 86,400 cubic feet

Payload Core Mezzanines: Configured with 5 fully isolated, independent 8-axis octagonal component utility decks.

Geometric Face Count:  8-sided octagonal hull geometry.

Aesthetic Slant Incline: 58.28-degree

View our collection of space-optimized Manufacturing & Production Systems (MPS) solutions. Fully scalable payload profiles deliver turn-key zoning clearance and high-yield spatial compression across multiple sub-levels—including Heavy-Load Component-Modular Production Rails, Automated Fabrication Mezzanines, Closed-Loop Assembly Cells, and Passive Air Purifying/High-Velocity Venting systems.

Dimensions:

• Vertical Peak Height: 90.0' (27.43m)
• Basal Ground Diameter: 111.24' (33.91m) [111 feet, 3 inches]
• Standardized Scaling Ratio: 1:1.236 Pure Golden Ratio Matrix
• Ground Footprint: 9,720.0 Square Feet (903.02m² / 0.22 Acres)
• Active Commercial Mezzanine Layers: 7 Fully Isolated, Independent 8-Axis Octagonal Utility Decks.
• The Spatial Compression Advantage: Achieves a highly efficient 27.8:1 Spatial Displacement Ratio, condensing approximately 38,000 square feet of high-yield usable interior real estate into less than a quarter-acre of physical land!
• Frame Network: 8-Axis industrial-grade heavy structural steel girder array with cross-braced rigid triangular web-trusses engineered to eliminate vertical load shifting, distribute structural stresses cleanly to the foundation, and completely absorb high-volume mechanical dead-weights.

Description:

• The Passive Convective Vacuum: High-occupancy commercial floors, kitchens, and equipment lines generate concentrated heat. Utilizing your strict 58.28-degree slant incline geometry, internal hot air naturally expands and funnels upward along the sloped panels, accelerating via the Venturi Effect as the dome narrows. External wind sweeping across the canopy creates a massive low-pressure drop over the automated Apex Crown Vent (Bernoulli's Principle), functioning as a permanent, passive mechanical vacuum that forcefully sucks heat and stale air out of the top while drawing a continuous stream of fresh air through your monolithic foundation ring-beam louvers silently every 3 minutes—slashing building HVAC energy overhead down to absolute zero!

• Exterior Shield: Interlocking architectural tiles utilizing universal vitrified ceramic cassettes mounted on a pressure-equalized rainscreen ventilation gap to drive convective thermal isolation, completely shielding the sensitive commercial interior from extreme environmental stress, Category 5 hurricanes, and direct solar thermal gain.

• Subterranean Infrastructure & Load Core: Features an integrated 20-foot deep dry reinforced concrete machinery basement utilizing a continuous hexagonal honeycomb support cell wall matrix to house central climate controls, automated freight lift gear, and utility inputs. All vertical utility trunk lines, high-pressure riser plumbing, and mechanical elevator cores are securely channeled up a reinforced 2-meter wide central structural utility mast, keeping the surrounding octagonal floor plates completely clear, open, and un-cluttered for commercial customization.

Dimensions:

• Vertical Peak Height: 90.0' (27.43m)
• Basal Ground Diameter: 111.24' (33.91m) [111 feet, 3 inches]
• Standardized Scaling Ratio: 1:1.236 Pure Golden Ratio Matrix
• Ground Footprint: 9,720.0 Square Feet (903.02m² / 0.22 Acres)
• Active Commercial Mezzanine Layers: 7 Fully Isolated, Independent 8-Axis Octagonal Utility Decks.
• The Spatial Compression Advantage: Achieves a highly efficient 27.8:1 Spatial Displacement Ratio, condensing approximately 38,000 square feet of high-yield usable interior real estate into less than a quarter-acre of physical land!
• Frame Network: 8-Axis industrial-grade heavy structural steel girder array with cross-braced rigid triangular web-trusses engineered to eliminate vertical load shifting, distribute structural stresses cleanly to the foundation, and completely absorb high-volume mechanical dead-weights.

Description:

• The Passive Convective Vacuum: High-occupancy commercial floors, kitchens, and equipment lines generate concentrated heat. Utilizing your strict 58.28-degree slant incline geometry, internal hot air naturally expands and funnels upward along the sloped panels, accelerating via the Venturi Effect as the dome narrows. External wind sweeping across the canopy creates a massive low-pressure drop over the automated Apex Crown Vent (Bernoulli's Principle), functioning as a permanent, passive mechanical vacuum that forcefully sucks heat and stale air out of the top while drawing a continuous stream of fresh air through your monolithic foundation ring-beam louvers silently every 3 minutes—slashing building HVAC energy overhead down to absolute zero!

• Exterior Shield: Interlocking architectural tiles utilizing universal vitrified ceramic cassettes mounted on a pressure-equalized rainscreen ventilation gap to drive convective thermal isolation, completely shielding the sensitive commercial interior from extreme environmental stress, Category 5 hurricanes, and direct solar thermal gain.

• Subterranean Infrastructure & Load Core: Features an integrated 20-foot deep dry reinforced concrete machinery basement utilizing a continuous hexagonal honeycomb support cell wall matrix to house central climate controls, automated freight lift gear, and utility inputs. All vertical utility trunk lines, high-pressure riser plumbing, and mechanical elevator cores are securely channeled up a reinforced 2-meter wide central structural utility mast, keeping the surrounding octagonal floor plates completely clear, open, and un-cluttered for commercial customization.

  Dimensions:

• Vertical Peak Height: 150.0' (45.72m)

• Basal Ground Diameter: 185.40' (56.51m) [185 feet, 5 inches]

• Standardized Scaling Ratio: 1:1.236 Pure Golden Ratio Matrix

• Ground Footprint: 27,000.0 Square Feet (2,508.38m² / 0.62 Acres)

• Active Manufacturing Mezzanine Layers: 12 Fully Isolated, Independent 8-Axis Octagonal Production Decks.

• The Spatial Compression Advantage: Achieves a highly efficient 27.8:1 Spatial Displacement Ratio, condensing a massive 145,000 square feet of heavy-load interior factory space (equivalent to 3.32 acres of flat horizontal plant floor) into just over a half-acre of physical land!

• Frame Network: Skyscraper-grade heavy structural steel girder array with cross-braced rigid triangular web-trusses engineered to eliminate vertical load shifting, distribute structural stresses cleanly to the foundation, and completely absorb high-volume mechanical vibrations.

Description:

• The Passive Convective Vacuum: High-heat fabrication machinery, welding blocks, and automated assembly equipment generate concentrated heat. Utilizing your strict 58.28-degree slant incline geometry, internal hot air naturally expands and funnels upward along the sloped panels, accelerating via the Venturi Effect as the dome narrows. External wind sweeping across the canopy creates a massive low-pressure drop over the automated Apex Crown Vent (Bernoulli's Principle), functioning as a permanent, passive mechanical vacuum that forcefully sucks heat and stale air out of the top while drawing a continuous stream of fresh air through your monolithic foundation ring-beam louvers silently every 3 minutes—slashing building HVAC energy overhead down to absolute zero!

• Exterior Shield: Interlocking architectural tiles utilizing universal vitrified ceramic cassettes mounted on a pressure-equalized rainscreen ventilation gap to drive convective thermal isolation, completely shielding the sensitive manufacturing interior from extreme environmental stress, Category 5 hurricanes, and direct solar thermal gain.

• Subterranean Infrastructure & Load Core: Features an integrated 20-foot-deep dry reinforced concrete machinery basement utilizing a continuous concrete cell wall matrix to house high-load processing inputs, climate controls, and utility infrastructure [finance]. All vertical utility trunk lines, high-pressure riser plumbing, robotic communication links, and freight elevator cores are securely channeled up a reinforced 2-meter wide central structural utility mast, keeping the surrounding octagonal floor plates completely clear, open, and un-cluttered for heavy assembly machinery layouts.

 Dimensions:

• Vertical Peak Height: 180.0' (54.86m)

• Basal Ground Diameter: 222.48' (67.81m) [222 feet, 6 inches]

• Standardized Scaling Ratio: 1:1.236 Pure Golden Ratio Matrix

• Ground Footprint: 38,880.0 Square Feet (3,612.07m² / 0.89 Acres)

• Active Manufacturing Mezzanine Layers: 15 Fully Isolated, Independent 8-Axis Octagonal Production Decks.

• The Spatial Compression Advantage: Achieves a highly efficient 27.8:1 Spatial Displacement Ratio, condensing a staggering 220,000 square feet of heavy-load interior factory space (equivalent to 5.05 continuous acres of a traditional legacy horizontal plant complex) into a compact vertical envelope of less than a single acre of physical land!

• Frame Network: Skyscraper-grade heavy structural steel girder array with cross-braced rigid triangular web-trusses engineered to eliminate vertical load shifting, distribute structural stresses cleanly to the foundation, and completely absorb high-volume mechanical vibrations.

Description:

• The Passive Convective Vacuum: High-heat fabrication machinery, heavy robotic assembly arms, and automated processing lines generate concentrated heat. Utilizing your strict 58.28-degree slant incline geometry, internal hot air naturally expands and funnels upward along the sloped panels, accelerating via the Venturi Effect as the dome narrows. External wind sweeping across the canopy creates a massive low-pressure drop over the automated Apex Crown Vent (Bernoulli's Principle), functioning as a permanent, passive mechanical vacuum that forcefully sucks heat and stale air out of the top while drawing a continuous stream of fresh air through your monolithic foundation ring-beam louvers silently every 3 minutes—slashing building HVAC energy overhead down to absolute zero!

• Exterior Shield: Interlocking architectural tiles utilizing universal vitrified ceramic cassettes mounted on a pressure-equalized rainscreen ventilation gap to drive convective thermal isolation, completely shielding the sensitive manufacturing interior from extreme environmental stress, Category 5 hurricanes, and direct solar thermal gain.

• Subterranean Infrastructure & Load Core: Features an integrated 20-foot-deep dry reinforced concrete machinery basement utilizing a continuous concrete cell wall matrix to house high-load processing inputs, climate controls, and utility infrastructure [finance]. All vertical utility trunk lines, high-pressure riser plumbing, robotic communication links, and freight elevator cores are securely channeled up a reinforced 2-meter-wide central structural utility mast, keeping the surrounding octagonal floor plates completely clear, open, and un-cluttered for heavy assembly machinery layouts.
