KICKBASS CONICAL WATER INFRASTRUCTURE & HYDRO SYSTEMS

The KICKBASS CE Tower Model 60WPS represents a powerful, highly strategic entry point into regional fluid logistics, municipal water defense, and critical utility protection. Traditional horizontal pumping hubs are intensely vulnerable to localized flash flooding, regional electric grid blackouts, and structural damage from severe weather events. The Model 60WPS completely isolates critical water distribution networks from external environmental risks, wrapping a high-capacity civil pumping engine inside an un-burnable, flood-proof, and climate-locked architectural fortress.

Dimensions:

Vertical Peak Height: 60.0' (18.29m)

Ground Diameter: 74.16' (22.60m) [74 feet, 2 inches]

Standardized Scaling Ratio: 1:1.236 Pure Golden Ratio Matrix

Industrial Infrastructure & Hydraulic Capacity:

Ground Footprint: Exactly 4,320.0 Square Feet (401.34m² / 0.10 Acres)

Total High-Altitude Head Space: 60 Vertical feet optimized for gravity-assisted pressure loops across localized municipal or regional agricultural districts.

The Logistical Footprint: Compresses standard, vulnerable horizontal pumping equipment footprints down to an ultra-efficient, highly secure vertical infrastructure asset.

Sub-Floor Hydro-Logistics Vault: Base capacity of 132,000 Gallons, programmatically scaling via our dynamic 1-Day Backup Buffer Factor to absorb localized line shocks and host multi-stage filtration loops smoothly.

Frame Network: 8-Axis industrial-grade heavy structural steel girder array with cross-braced rigid triangular web-trusses engineered to neutralize motor harmonics and regional fluid surge loads.

Environmental Control: Class 1 Absolute Atmospheric Lock Layer. Features dual-door automated commercial vestibule airlocks with heavy-duty low-voltage magnetic gaskets to eliminate internal condensation, rust, and electrical tracking risks on your primary telemetry control arrays.

Exterior Shield: Interlocking Casing utilizing universal vitrified ceramic cassettes. Mounted on a pressure-equalized rainscreen ventilation gap to drive convective heat back-drafting, keeping pump machinery naturally cool during intense high-load operation loops.

Anchor Profile: Heavy-Duty Monolithic Concrete Octagonal Perimeter Ring-Beam anchored directly to a network of eight bored, steel-caged post-tensioned sub-grade deep pier concrete columns drilled 15 to 30 feet down to lock directly into local structural bedrock, delivering complete stabilization against massive structural live loads, motor harmonics, and tornadic forces.

Description:

By leveraging your strict 58.28-degree slant incline geometry, the CE Tower converts extreme hurricane or tornadic wind forces into a powerful downward downforce vector. This downforce actively pins the facility to its post-tensioned bedrock piers, turning storm energy into stabilizing force. The vaulted 60-foot vertical interior space accommodates heavy vertical inline turbine pumps and specialized manifold configurations, utilizing gravity-fed head pressure to streamline distribution efficiency across regional sub-surface pipe networks.

The Model 60WPS provides municipalities, tribal sovereign nations, and industrial utility partners with a bulletproof asset class for absolute water, infrastructure, and energy sovereignty.

Dimensions:

Vertical Peak Height: 90.0' (27.43m)

Basal Ground Diameter: 111.24' (33.91m) [111 feet, 3 inches]

Standardized Scaling Ratio: 1:1.236 Pure Golden Ratio Matrix

Industrial Infrastructure & Hydraulic Capacity:

Basal Ground Footprint: Exactly 9,720.0 Square Feet (903.02m² / 0.22 Acres)

Total High-Altitude Head Space: 90 Vertical feet optimized for high-pressure gravity-fed municipal distribution networks.

The Logistical Footprint: Replaces traditional sprawling municipal pump yards with a single, highly compressed vertical infrastructure footprint.

Sub-Floor Hydro-Vault: 450,000-Gallon integrated low-vibration surge tank, heavy-duty suction well, and multi-stage sediment filtration basin network.

Engineering Core:

Frame Network: 8-Axis industrial-grade heavy structural steel girder array with cross-braced rigid triangular web-trusses engineered to neutralize immense mechanical vibration and high-pressure hydraulic surge loads.

Environmental Control: Class 1 Absolute Atmospheric Lock Layer. Features dual-door automated commercial vestibule airlocks with heavy-duty low-voltage magnetic gaskets and climate-locked humidity blocks to completely eliminate internal condensation, rust, or electrical tracking risks on your primary telemetry control arrays.

Exterior Shield: Interlocking Casing utilizing universal 30 cm x 120 cm vitrified ceramic cassettes. Mounted on a 20mm pressure-equalized rainscreen ventilation gap to drive convective heat back-drafting, keeping pump machinery naturally cool during intense high-load operation loops.

Anchor Profile:  Heavy-Duty Monolithic Concrete Octagonal Perimeter Ring-Beam anchored directly to a network of twelve bored, steel-caged post-tensioned sub-grade deep pier concrete columns drilled 15 to 45 feet down to lock directly into local structural bedrock, delivering absolute stabilization against massive structural live loads, motor harmonics, and tornadic forces.

Description:  The KICKBASS CE Tower Model 90WPS represents a massive, multi-million-dollar paradigm shift in regional civil engineering, municipal water security, and critical utility protection. Traditional municipal pumping stations are highly vulnerable to localized flooding, regional grid blackouts, malicious physical intrusion, and structural damage from severe weather events. The Model 90WPS completely isolates critical municipal water distribution networks from external environment risks, wrapping a high-capacity civil pumping engine inside an un-burnable, flood-proof, and climate-locked architectural fortress.

By leveraging your strict 58.28-degree slant incline geometry, the Tower converts extreme hurricane or tornadic wind forces into a powerful downward downforce vector. This downforce actively pins the facility to its post-tensioned bedrock piers, turning storm energy into stabilization force. The vaulted 90-foot interior accommodates multi-stage vertical inline turbine pumps and massive high-altitude manifold configurations, utilizing gravity-fed head pressure to streamline municipal distribution efficiency.

The Model 90WPS provides municipalities, tribal sovereign nations, and industrial utility partners with a bulletproof asset class for absolute water, infrastructure, and energy sovereignty.

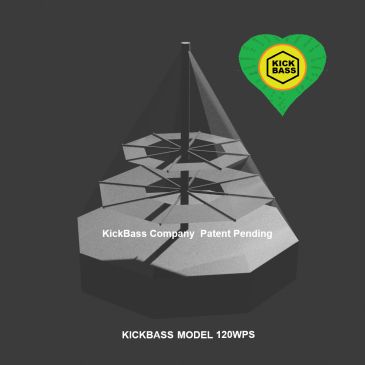

Dimensions:

Vertical Peak Height: 120.0' (36.58m)

Basal Ground Diameter: 148.32' (45.21m) [148 feet, 4 inches]

Standardized Scaling Ratio: 1:1.236 Pure Golden Ratio Matrix

Industrial Infrastructure & Hydraulic Capacity:

Basal Ground Footprint: Exactly 17,280.0 Square Feet (1,605.37m² / 0.40 Acres).

Total High-Altitude Head Space: 120 Vertical feet explicitly optimized for high-pressure gravity-fed regional distribution networks.

The Logistical Footprint: Compresses standard, vulnerable horizontal pumping equipment layouts down to an ultra-efficient, highly secure vertical infrastructure asset.

Sub-Floor Hydro-Logistics Vault: Base capacity of 640,000 Gallons, programmatically scaling via our dynamic 1-Day Backup Buffer Factor to absorb heavy hydraulic line shocks, eliminate water hammer forces, and host high-volume filtration loops.

Engineering Core:

Frame Network: 8-Axis industrial-grade heavy structural steel girder array with cross-braced rigid triangular web-trusses engineered to completely neutralize extreme industrial pump harmonics and structural surge forces.

Environmental Control: Class 1 Absolute Atmospheric Lock Layer. Features dual-door automated commercial vestibule airlocks with heavy-duty low-voltage magnetic gaskets to eliminate internal condensation, rust, and electrical tracking risks on your primary telemetry control arrays.

Exterior Shield: Interlocking tiles mounted on a structural barrier matrix to drive continuous thermal isolation, completely shielding the sensitive compute core from external environment stress, Category 5 hurricanes, and solar thermal gain.

The Off-Grid ENode Energy Matrix:

The Energy Overdrive: Advanced solar overlay engineering integrated directly onto the non-porous tiles, optimized to surge micro-grid electrical conversion down your busbars exactly when solar thermal loads peak to feed raw DC kilowatts directly into your solid-state energy storage vaults.

Anchor Profile: Heavy-Duty Monolithic Concrete Octagonal Perimeter Ring-Beam anchored directly to a network of sixteen bored, steel-caged post-tensioned sub-grade deep pier concrete columns drilled 20 to 40 feet down to lock directly into local structural bedrock, delivering complete stabilization against massive structural live loads, motor harmonics, and tornadic forces.

Description: The KICKBASS CE Tower Model 120WPS represents a massive, multi-million-dollar paradigm shift in regional fluid logistics, municipal water defense, and critical utility protection. Traditional horizontal municipal pumping stations are intensely vulnerable to localized flooding, regional electric grid blackouts, malicious physical intrusion, and structural damage from severe weather events. The Model 120WPS completely isolates critical water distribution networks from external environmental risks, wrapping a high-capacity civil pumping engine inside an un-burnable, flood-proof, and climate-locked architectural fortress.

By leveraging your strict 58.28-degree slant incline geometry, the CE Tower converts extreme hurricane or tornadic wind forces into a powerful downward downforce vector. This downforce actively pins the facility to its post-tensioned bedrock piers, turning storm energy into stabilizing force. The vaulted 120-foot vertical interior space accommodates heavy multi-stage vertical inline turbine pumps and massive high-altitude manifold configurations, utilizing gravity-fed head pressure to streamline distribution efficiency across vast regional sub-surface pipe networks.

Advanced solar overlay engineering integrated directly onto the non-porous tiles harvests high-energy ultraviolet light on the way in to run independent solid-state energy storage banks. This off-grid energy network feeds directly down to run primary 12V and 24V telemetry systems, automated valve manifolds, and backup pump loops, keeping the municipal water supply flowing seamlessly even when the regional electric grid suffers an absolute blackout. The Model 120WPS provides municipalities, tribal sovereign nations, and industrial utility partners with a bulletproof asset class for absolute water, infrastructure, and energy sovereignty.

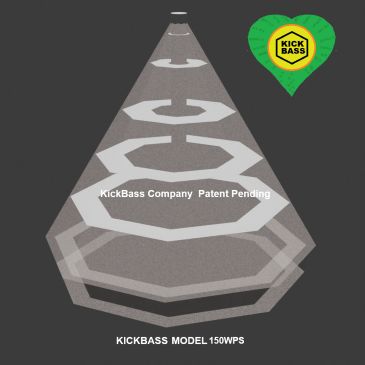

Dimensions:

Vertical Peak Height: 150.0' (45.72m)

Basal Ground Diameter: 185.40' (56.51m)

Standardized Scaling Ratio: 1:1.236 Pure Golden Ratio Matrix

Industrial Infrastructure & Hydraulic Capacity:

Basal Ground Footprint: Exactly 27,000.0 Square Feet (2,508.38m² / 0.62 Acres).

Total High-Altitude Head Space: 150 Vertical feet explicitly optimized for high-pressure gravity-fed distribution networks.

Sub-Floor Hydro-Logistics Vault: Base capacity of 1,000,000 Gallons, programmatically scaling via our dynamic 1-Day Backup Buffer Factor to absorb heavy hydraulic line shocks, eliminate water hammer forces, and host high-volume filtration loops.

Engineering Core:

Frame Network: 8-Axis industrial-grade heavy structural steel girder array with cross-braced rigid triangular web-trusses engineered to completely neutralize extreme industrial pump harmonics.

Environmental Control: Class 1 Absolute Atmospheric Lock Layer. Features dual-door automated commercial vestibule airlocks with heavy-duty low-voltage magnetic gaskets to eliminate internal condensation and electrical tracking risks on your primary telemetry control arrays.

Exterior Shield & Energy Matrix: Interlocking tiles mounted on a structural barrier matrix shield the compute core from environment stress while solar overlay engineering integrated directly onto the non-porous tiles harvests light to feed power down your busbars to run primary telemetry systems, automated valve manifolds, and backup pump loops.

Description:  The KICKBASS CE Tower Model 150WPS represents a massive, multi-million-dollar paradigm shift in regional fluid logistics, municipal water defense, and critical utility protection. Traditional horizontal municipal pumping stations are intensely vulnerable to localized flooding, regional electric grid blackouts, and structural damage from severe weather events. The Model 150WPS completely isolates critical water distribution networks from external environmental risks, wrapping a high-capacity civil pumping engine inside an un-burnable, flood-proof, and climate-locked architectural fortress.

By leveraging your strict 58.28-degree slant incline geometry, the CE Tower converts extreme hurricane or tornadic wind forces into a powerful downward downforce vector, pinning the facility tightly to its post-tensioned bedrock piers.

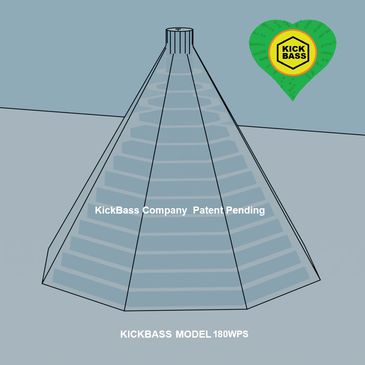

 Dimensions:

• Vertical Peak Height: 180.0' (54.86m)

• Basal Ground Diameter: 222.48' (67.81m) [222 feet, 6 inches]

• Standardized Scaling Ratio: 1:1.236 Pure Golden Ratio Matrix

• Ground Footprint: 38,880.0 Square Feet (3,612.07m² / 0.89 Acres)

• Active Processing Mezzanine Layers: 15 Continuous Vertical Utility Tiers spaced at modular elevation intervals.

• The Spatial Compression Advantage: Achieves a highly efficient 27.8:1 Spatial Displacement Ratio, condensing a massive municipal water processing facility and over 3.5 million gallons of integrated fluid storage into less than a single acre of physical real estate!

• Frame Network: 8-Axis industrial-grade heavy structural steel girder array with cross-braced rigid triangular web-trusses engineered to withstand severe hydrostatic pressures, distribute massive dead-weights safely across the bedrock pad, and completely eliminate system pump harmonics.

Description:

• The Passive Convective Vacuum: High-capacity processing and filtration loops generate concentrated ambient humidity. Utilizing your strict 58.28-degree slant incline geometry, internal moist air naturally expands and funnels upward along the sloped panels, accelerating via the Venturi Effect as the dome narrows. External wind sweeping across the canopy creates a massive low-pressure drop over the automated Apex Crown Vent (Bernoulli's Principle), functioning as a permanent, passive mechanical vacuum that forcefully sucks humidity and heat out of the top while drawing fresh air through the base ring-beam louvers silently every 3 minutes—slashing facility HVAC overhead to absolute zero!

• Exterior Shield: Interlocking architectural tiles utilizing universal vitrified ceramic cassettes mounted on a pressure-equalized rainscreen ventilation gap to drive convective thermal isolation, completely shielding the sensitive purification core from extreme environmental stress, Category 5 hurricanes, and direct solar thermal gain.

• The Integrated Fluid Battery Array: Purified water is continuously driven up the heavy 6-meter wide central Vertical Water Mast riser column to supply gravity-fed distribution lines. The massive, insulated sub-floor octagonal reservoir and dual structural storage boxes sit directly at the bedrock line, acting as a high-density thermal fluid battery that completely stabilizes internal temperatures while ensuring independent, off-grid water safety for entire regional populations 24/7/365!
